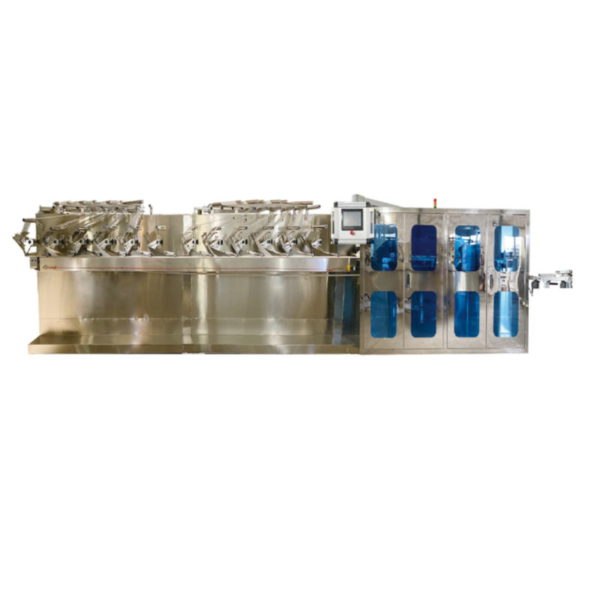

Machine à plier les lingettes humides 30-120pcs 12 couloirs

Matériau approprié

Non-tissés filés, tissus non tissés laminés à chaud, papier lavé à l'air

Puissance :

5KW

Poids de la machine

3tons

Taille de la machine

9190x2850x1770(MM) (L x l x H)

Unique benefits of owning Rigor’s Wet Wipes Folding Machine:
We care what you care most about purchasing a wet wipes folding machine.
Nous avons toujours cru qu'il fallait servir les meilleures machines possibles aux clients.
Notre mission est d'aider chaque client à rester au sommet des fournisseurs de lingettes humides.

Description du produit

Rigor machinery make sure each running part of machine is designed to be simple, time-saving and user-friendly. Easy for operation and maintenance.

Matériau approprié Non-tissés filés, tissus non tissés laminés à chaud, papier lavé à l'air
GSM de la matière première 40-80g/m2
vitesse de la capacité 2000-4200 psc/min
Mode de pliage Type "Z" "W" "C"(non-pop up/pop up)
Unité de refente : 6 rolls
automatique compter et empiler
Taille du produit (déplié) (135-170)x(170-210) (MM)(Lxl)
Taille du produit (plié) (135-170) x (90-110)(MM)(Lxl)
Système de contrôle Contrôle de la vitesse de la fréquence, contrôle PLC
Taille de la matière première Diamètre maximum : 1200mm
Largeur :600-1200mm
Source électrique AC380V 50/60Hz
Poids de la machine 3tons
Taille de la machine 9190x2850x1770(MM) (L x l x H)
Puissance 5KW

Folding machine system character:

part advantage
Dispositif de refente
To slit jumbo rolls into 6 lines steadily and clearly
Tissue loading device
Jumbo rolls of raw material could be loaded and unloaded automatically without manual labor.
Standard folding system
This folding system would be running more stable and faster
Tension and pulling system
Wipes going
Through tension
device will be more compact and tight for subsequent action of cutting and piling.
Online wetting system

There are holes in each of 12 stainless pipes under each layer of tissues. Food-grade water taps are specially connected to each pipe on top of the sink rather than on thbelow so operators do not have to bend down eac time to record and regulate water amount.
Besides, There is also a flow meter under the sink for water amount recording and regulating.
Counting and stacking system
the deviation correction will correct tissue movement in stacking section.
Touch screen interface
Our programming is clear and concise. Tissue length and packaging length and be set on the touch screen. It is clear and simple.
PLC and full-servo drive system
Different from other manufacturers who adopt variable frequency speed control system or step motors, our full servo system is more costly and thus makes for more stability, accuracy and higher speed.
Water tank for solution storage and mixing

Chemicals and water are stored in the tank.The tank will mix chemicals and water automatically with its agitator inside.
