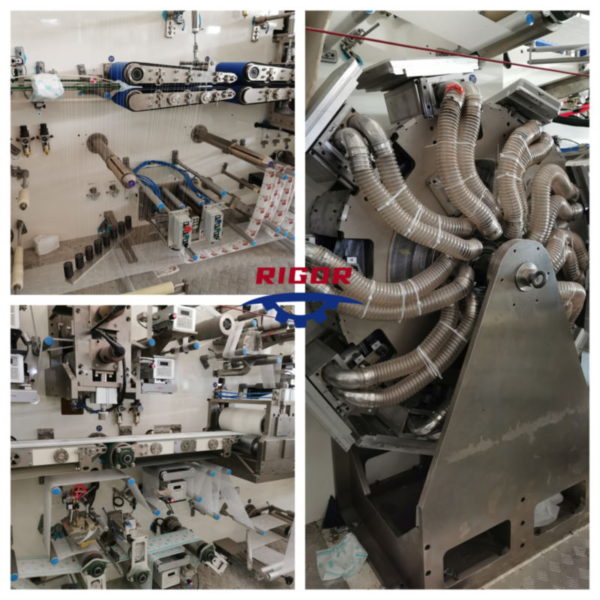

Máquina de pañales para bebés Pull Up Pants

Machine Main Technical Parameters
Design speed	600 Pcs/minute（M size）
Working speed	500 Pcs/minute（M size）
Qualified rate	>= 97% (exclude the wastage due to the glue applicators and materials splicing joint)
Efficiency	>= 85%
installation capacity	>=400KW
Electricity	380V ±5%、50HZ
Wire	Three phases four wires 380V/50Hz (ground wire) 3X150mm³+1X70mm³+1X25mm³
Air pressure	>=0.8Mpa 2.6m³/min
Total weight	About 85tons
Tamaño de la máquina	32×8×5 M(L×W×H)
Working space	42×12×8 M (L×W×H)
Machine color	Rice white ,can be changed by order
Product size	M-L-XL-XXL size
Containers	6X40HQ Packaging: PE cover packing in container



Machine main parts brand
Nombre	Origen	Brand
PLC Control System	Japan	Mitsubishi
Servo motor	Japan	Mitsubishi
Touchable screen	Japan	Mitsubishi
Automatic fault alarm	Japan	Mitsubishi
Auto web guider	USA	BST
Sensor	USA	Banner
Safety production	France	Schneider
Cutter raw material	USA	M7
Gear （according to usage）	China/Germany/Japan/Sweden	HRB/NSK
Timing belt	Germany/USA	Optibelt or Gates
Low voltage electronic	France	Schneider
Electrical connection terminal	Germany	Phoenix
Temperature controlling system	Japan	Omron
High-speed joint	Japan	SMC
Pressure regulating valve	Chinese Taiwan	Airtac
Pneumatic element	Chinese Taiwan	Airtac
Solenoid valve	Chinese Taiwan	Airtac
Moisture separator	Chinese Taiwan	Airtac
Planetary reducer	Chinese Taiwan	Airtac
Liner guide rail	Chinese Taiwan	Airtac



Machine Standard Configuration:

Crusher system
Bottom tissue feeding, roll diameter φ800mm
Fluff forming system
SAP feeding system
Upper tissue, roll diameter φ800mm
Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
Press the absorbent core
ADL feeding, roll diameter φ800mm
One set products cutting unit
Hydrophilic nonwoven supply, roll diameterφ800mm
Leak cuff unit
Leg cuffs lycra supply
Backsheet film supply,diameterφ600mm
Three pieces complex, two sides fixing unit, adhesion pressing
Surface layer, absorption core, backseet film pressing
Inner waist nonwoven supply,roll diameterφ800mm
Front color tape passive unwinding, roll dia 500mm, max cut size 100*100mm
Waist elastic lycra supply
Waist fluff part lycra cut unit, in case this part gets wrinkled.
Horizontal stacker transmission

Las razones hacen que la máquina Rigor sea la opción preferida:

1.High speed: 500-600 pcs/min
2.Fabricante profesional
3.Máxima calidad
4.Alto rendimiento
5.Control servo automático completo
6.Fácil manejo
7.Garantía de calidad
8.Solución de conversión de productos de higiene
9.Servicio personalizado
10.Main apoyó piezas de marcas famosas del mundo.

Servicio postventa:

El vendedor será responsable de proporcionar dos técnicos a la fábrica del comprador para ayudar al comprador para la instalación de las máquinas a su llegada, para dar instrucciones completas para las instalaciones y operaciones para que el comprador puede instalar las máquinas y operar para la prueba de funcionamiento correctamente.

Para más información, no dude en ponerse en contacto con nosotros, estaremos encantados de atenderle.
