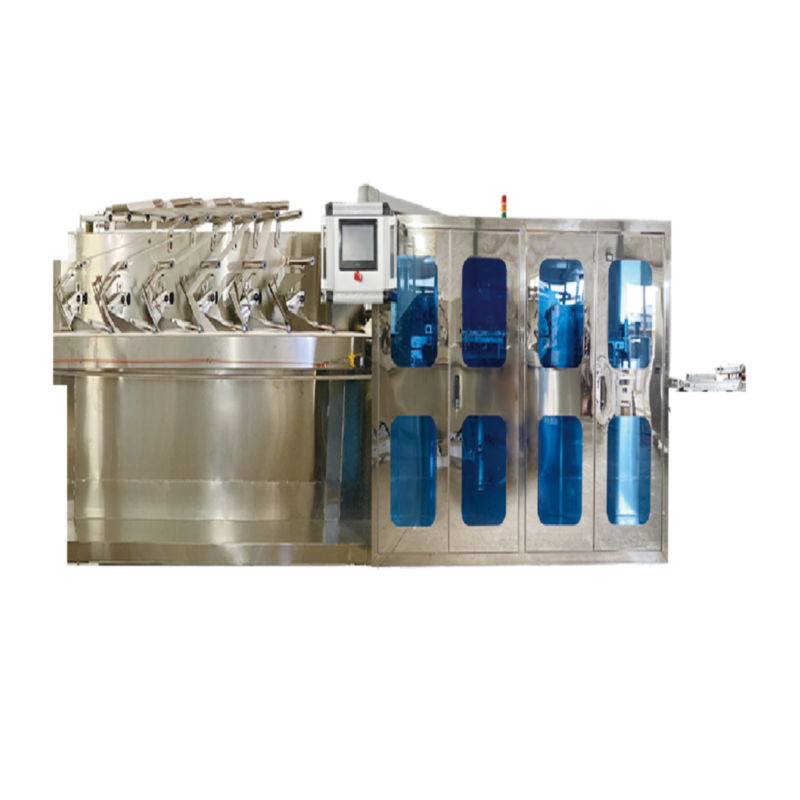

30-120pcs 6lanes Wet Wipes Folding Machine

Suitable  Material

Spunlace non-woven, hot rolling non-woven fabrics, Air-laid paper

Power:

5KW

Machine weight

2.5tons

Machine size

4900x2400x2050(MM) (L x W x H)

Unique benefits of owning Rigor’s wet wipes machine:
We care what you care most about purchasing a wet wipes machine.
We have always believed in serving best machines possible for customers.
Our mission is to help each client stay at the top of wet wipes supplier.

Product Description

This machine adopts full servo drive and PLC control system for operation. It’s made of raw material loading device, tension device, folding device, automatic wetting system, automatic counting device and stacking device.
Stainless steel is applied to the cover of machine and main spare parts. The parts in contact with liquid and fabric are made of stainless steel. All the processes are finished on the machine without manual labor involved, so the finished product meets hygienic standard. The folding device is specially designed to make various folding ways feasible. It’s smart and speedy.

Suitable material Spunlace non-woven, hot rolling non-woven fabrics, Air-laid paper
GSM of raw material 40-80g/m2
capacity speed 1000-2100 psc/min
Folding way “Z”“W””C” type(non-pop up/pop up)
Slitting unit: 6 rolls
automatic counting and piling
Size of product (unfolded) (135-170)x(170-210) (MM)(LxW)
Size of product (folded) (135-170) x (90-110)(MM)(LxW)
Controlling system Frequency speed controlling, PLC controlling
Size of raw material Max dia:1200mm
Width :600-1200mm
Electrical source AC380V 50/60Hz
Machine weight 2.5tons
Machine size 4900x2400x2050(MM) (L x W x H)
Power 5KW

Folding machine system character:

part advantage
Slitting device
To slit jumbo rolls into 6 lines steadily and clearly
Tissue loading device
Jumbo rolls of raw material could be loaded and unloaded automatically without manual labor.
Standard folding system
This folding system would be running more stable and faster
Tension and pulling system
Wipes going
Through tension
device will be more compact and tight for subsequent action of cutting and piling.

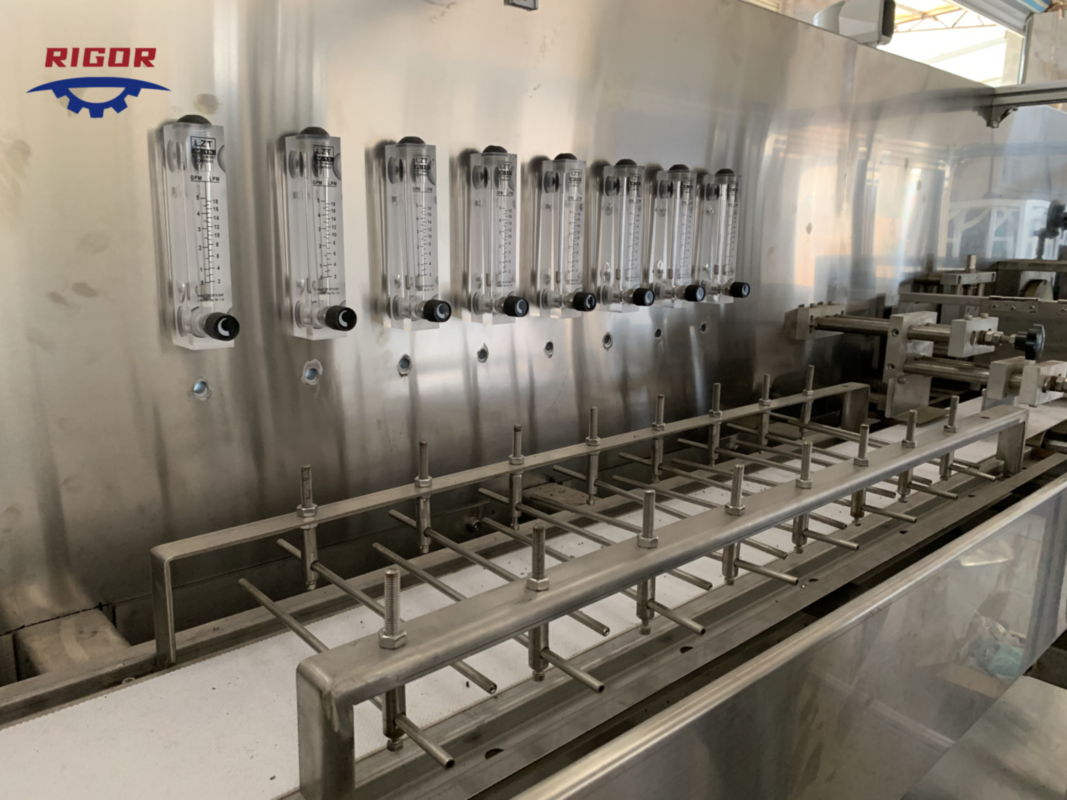

Online wetting system

There are holes in each of 12 stainless pipes under each layer of tissues. Food-grade water taps are specially connected to each pipe on top of the sink rather than on thbelow so operators do not have to bend down eac time to record and regulate water amount.
Besides, There is also a flow meter under the sink for water amount recording and regulating.
Counting and stacking system
the deviation correction will correct tissue movement in stacking section.
Touch screen interface
Our programming is clear and concise. Tissue length and packaging length and be set on the touch screen. It is clear and simple.
PLC and full-servo drive system
Different from other manufacturers who adopt variable frequency speed control system or step motors, our full servo system is more costly and thus makes for more stability, accuracy and higher speed.
Water tank for solution storage and mixing

Chemicals and water are stored in the tank.The tank will mix chemicals and water automatically with its agitator inside.

Rigor provides full aspects of after-sales services :
We welcome your sending technician to our factory to study and run the machine ordered before the machine is delivered.
After the machine arriving at your factory, we will send our engineer to your factory to help install and start up the machine and teach your workers to run the machine for you.
Our engineer can also stay in your factory to operate the machine for you for several months if you need.
We provide life-long after-sales service for our machines.
Our warranty extends to 12 months.
