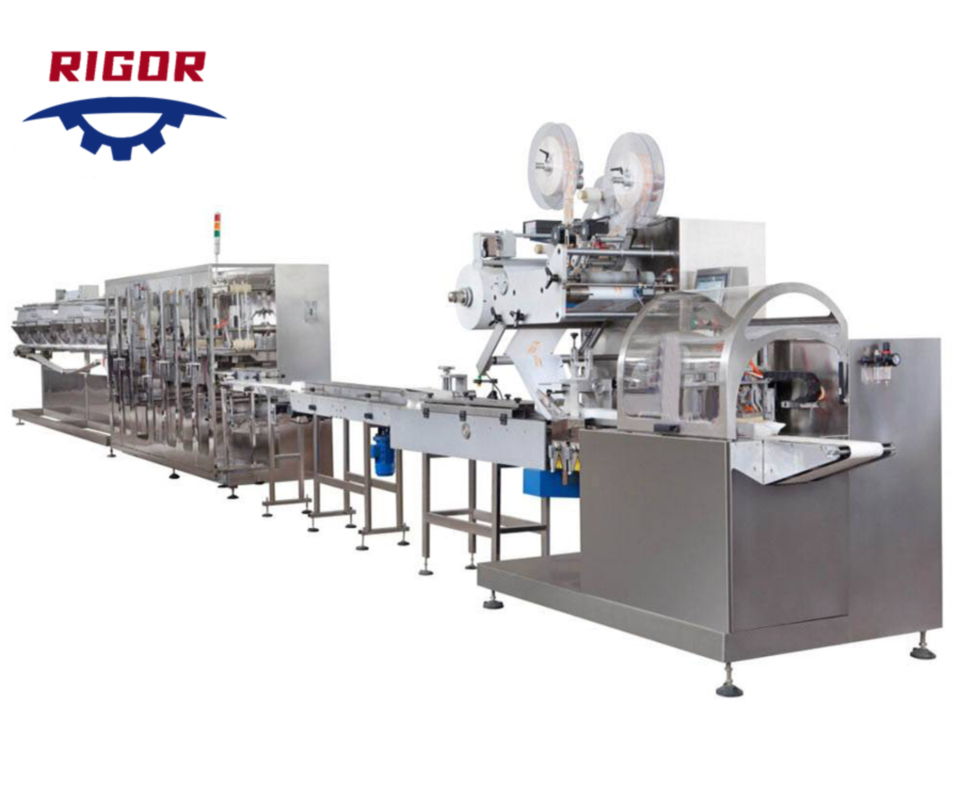

30-120pcs Kitchen Wet Tissue Making Machine



Machine weight


Payment Terms

T/T, L/C

Electrical source

AC380V 50/60Hz

Product Description

Unique benefits of owning Rigor’s baby diaper machine:
We care what you care most about purchasing a diaper machine.
We have always believed in serving best machines possible for customers.
Our mission is to help each client stay at the top of baby diaper supplier.
For more information, please do not hesitate to contact us, we would be very happy to serve you.

Production flow:

Raw material loading �?vertical-folding �?tissue wetting �?tissue cutting �?tissue counting and stacking �?tissue delivery �?film date Printing, punching and labeling→tissue packing �?full auto plastic lid application

Product Type: Baby wet wipes; Household wet wipes �?0-120pcs/pack)


Technical feature�?/h2>
This machine adopts Full servo drive and PLC control system for operation. It’s made of raw material loading device, tension device, folding device, automatic wetting system, automatic counting device and slitting device, printing and punching device, labeling device, packing and gusseting device, full auto plastic lid application for finished products.

Stainless steel is applied to the cover of machine and main spare parts. The parts in contact with liquid and fabric are made of stainless steel. All the processes are finished on the machine without manual labor involved, so the finished product meets hygienic standard. The folding device is specially designed to make various folding ways feasible. It’s smart and speed

Main technical Parameters:

Suitable materialSpunlace non-woven, hot rolling non-woven fabrics, Air-laid paper
Packing filmOPP/PE, PET/PE ,PET/AL/PE
GSM of raw material40-80g/m2
capacity speed3500-4800 psc/min (25-60bags)
Folding way“Z”“W””C�?type(pop up and non-pop up)
Size of product (unfolded)(135-170)x(170-210) (MM)(LxW) (Modifiable�?/td>
Size of product (folded) (135-170) x (90-110)(MM)(LxW) (Modifiable�?/td>
Electrical sourceAC380V 50/60Hz
Power 15KW
Machine size12200mmX2450mmX2200mm (L×W×H)
Machine weight5000kg
Wetting systemone stainless steel water tank with agitator (preset full-auto continuous
& circular stirring system); +one flow meter= the amount of sprayed liquid can be regulated
Control system:Pre-programmed full-auto PLC control system; Frequency speed controlling (�?provide all the programs to buyer)
Punching systemsynchro rotary cutter
Counting systemAuto-counting ( operation interface setting)
Material Loading device:2 holders sliting into12 channels, automatic tension controller


Our Advantages

Concentration on the area of diaper machine
Our factory focuses on different hygienic sanitary machinery production lines industry. For more than 20 years, We try our best to concentrate on improving our technology, skills and experience in this area. As a result, we gained a great number of honours and awards from Chinese government and our customers both from domestic and overseas markets.

Professionality for decades
In order to make sure our professionality is in the top level of the area, we always keep in step with the global hygienic sanitary products markets, continuously improving and innovating our technology to the lastest trends.We are able to offer you reliable production lines and professional solution and services.

Customization for special needs
With the highest level of technology in the area, we would very much like to attend to the advice of customers carefully, and offer you suitable and individual design to meet your requirements and satisfy you.

Preciseion and Quality Control
As a professional and experienced factory, we take “Quality First” as our working guideline, all majority parts of our production lines are purchased and processed according to the highest standards of the industry.
We have imported top grade CNC Machines to make sure accuracy and life long usage of the production lines we produced.
All the machines sold will be installed and assembled by experienced technicians.

We commit that the production lines we produced will perform excellently and stably, we sincerely hope that our efforts can help you to be successful. We are sure that our excellent machines can meet your demand and give you a tremendous feeling of fulfillment.


The reasons make Rigor machine the preferred option:

1.High speed: 3500-4800 pcs/min (25-60bags)
2.Professional manufacturer
3.Top quality
4.High performance
5.Full servo automatic control
6.Easy operation
7.Quality assurance
8.Hygiene products converting solution
9.Customized service
10.Main supported parts from world famous brands.

After-sales service

The Seller shall be responsible to provide two technician to the buyer �?s factory to help the buyer for Installation of the machines on their arrivals, to give full instruction for installations and operations so that the buyer can install the machines and operate for test run properly .
