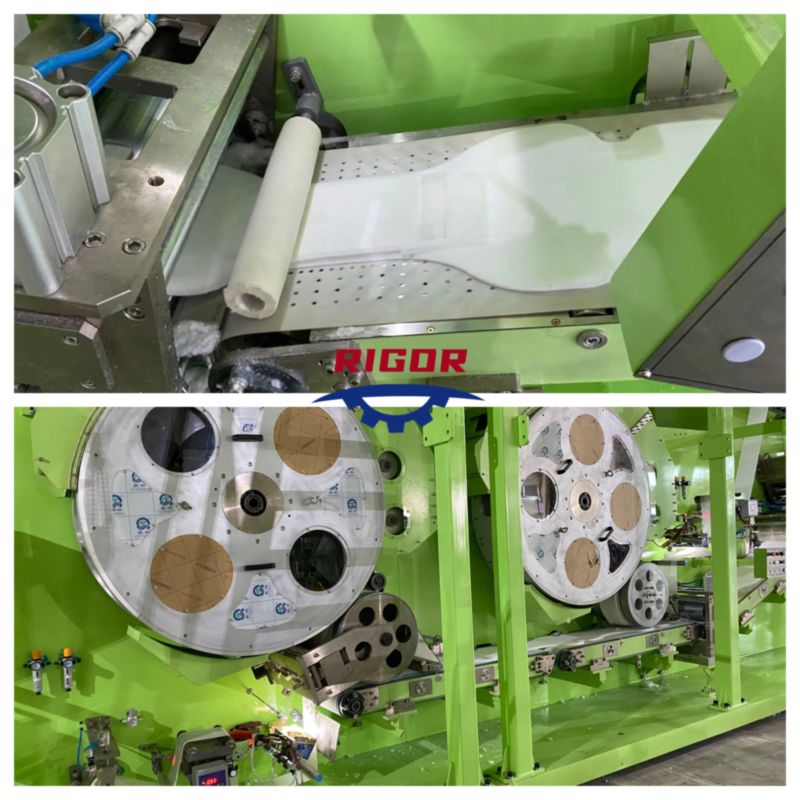

Adult Diaper Machine

Designed Speed

250pcs/min

Power Supply

3 phase, 5 wires (380v, 50HZ)

Machine Size

35.0m× 8.5m× 4.2m(L× W× H )

Machine Direction:

From Right to Left (can be designed as customer’s demand)

Unique benefits of owning Rigor’s Adult Diaper Machine:
We care what you care most about purchasing a machine.
We have always believed in serving best machines possible for customers.
Our mission is to help each client stay at the top of Adult Diaper supplier.

Product Description

The reasons make Rigor machine the preferred option:

1.High speed: 150-250 pcs/min
2.Professional manufacturer
3.Top quality
4.High performance
5.Full servo automatic control
6.Easy operation
7.Quality assurance
8.Hygiene products converting solution
9.Customized service
10.Main supported parts from world famous brands.


Performances:
1. Volume (million pieces/ year) 40-70 million pieces
2. Designed Speed 250pcs/min
3. Stable Speed 150-200 pcs /min
4.  Passing rate ≥ 97% (Not include the glue applicator, Auto Splicing)

 Technical Parameter:
1. Power Supply 3 phase, 5 wires  (380v, 50HZ)
2. Power Installed 400KW
3. Power Used 350 KW
4. Electric wire 3×120mm2+1×50mm2+1×25mm2
5. Compressed Air Supply 0.6~0.8Mpa
6. Compressed Air Absorption 5000 Nl/min
7. Machine Size 35.0m× 8.5m× 4.2m(L× W× H )
8. Working Size 40m× 12.0m ´5.0m  (L× W× H )
9. Machine Weight About 70T (whole production line)
10. Machine Color:  Blue ( confirm with customer)
11. Machine Direction: From Right to Left   (can be designed as customer’s demand)
12. Containers: 6´ 40 HQ containers
13. Finish Product Size:

XLLMS

( Based on Customer’s requirement)

  Max  Min
Length  1000mm 450mm
Width  880mm 350mm
14. Product Structure:
Basic structure:   Fluff core, SAP, top sheet, backsheet, frontal tape, side tape, leg elastic, ADL
Optional structure: Double core, waistband, stand cuff, ADL, Fasten belt(T-tape).



Main Features:

Network control, integrity of process, paremeters and alarm.
Multi-points network.
Process parameters setting.
All parameters setting.
Full modular design.
Phaser auto tracking.
Space for Ethernet connection.
Space for other auxiliary control points.

Main Function:

Industry Operate Interface
Sequence Start
Warming System
Auto controls other auxiliary parts.
Raw Material Control
Quality Control
Other Functions Can Be Decided On Actual Request

Main parts suppliers:

PARTS BRAND COUNTRY
PLC MITSUBISH JAPAN
TOUCH SCREEN(HMI)
INVERTER
SERVO MOTOR
(about 52 pcs)
TIME BELTS GATES USA
SENSORS SUNS JAPAN
TEMPTURE CONTROLLER OMRON JAPAN
CONVEYOR LIDA SWITZERLAND
CORRECTIVE DEVICE E+L GERMANY
GAS SWELLING SMC OR FESTO TAIWAN OR GERMANY
ROTARY JOINTER MERCOTAC USA
LOW ELECTRIAL PARTS SCHNEIDER GERMANY
SOLID RELAY OMRON JAPAN
MAIN BEARING NTN or NSK JAPAN
OTHER BEARING HRB CHINA

After-sales service:

1.The seller takes charge of the machine installation and testing at the buyer’s workshop. The buyer should notify the seller after machine arrived the buyer’s workshop, then the seller sends technicians to the buyer’s factory for installation, testing and training on workers;
2.All the ticket expense for supplier’s technician and in-land transportation, accommodation and meals will be under Buyer’s responsibility.
3.One year guarantee period from testing finished at the buyer’s workshop, excluding wearing parts (such as cutter/knife, wearing belt and heating spare parts) and components damage made by manual operation;
4.The seller provides non-scheduled service as per seller’s requirement.

For more information, please do not hesitate to contact us, we would be very happy to serve you.
