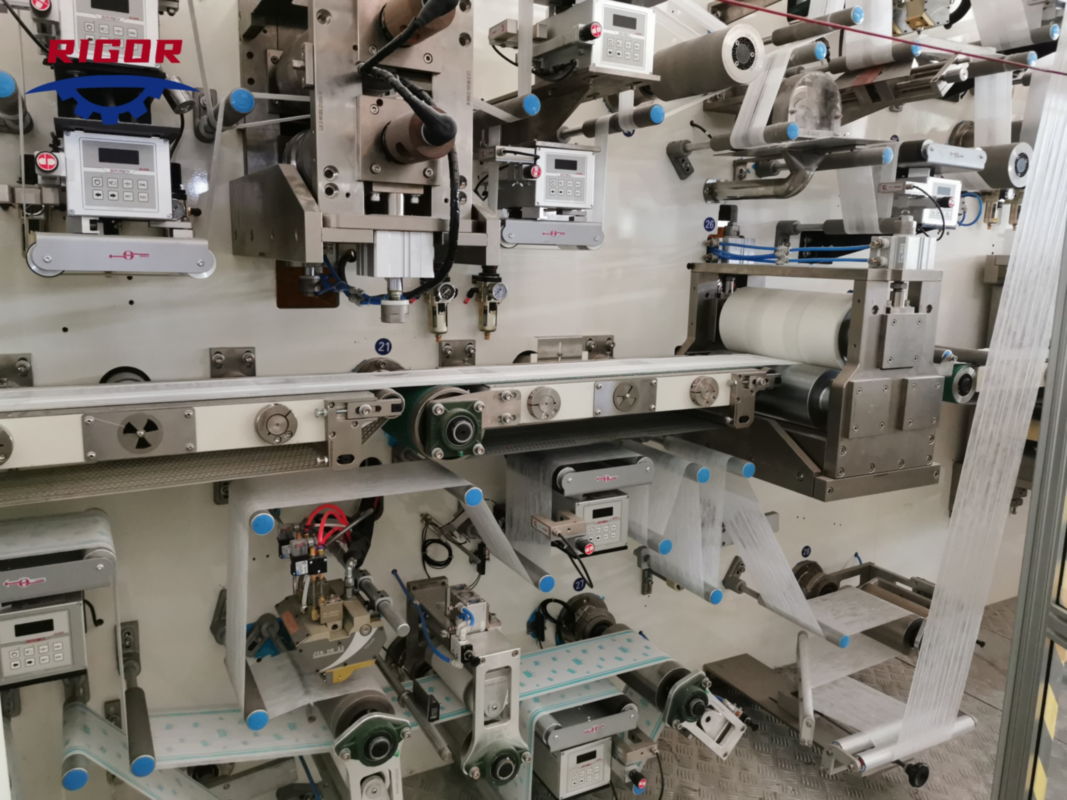

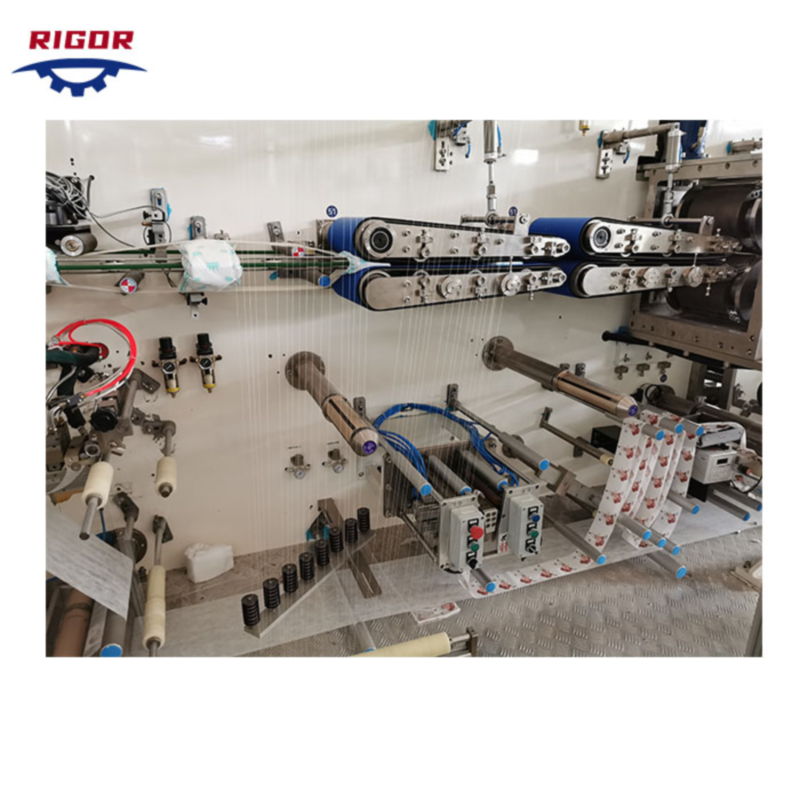

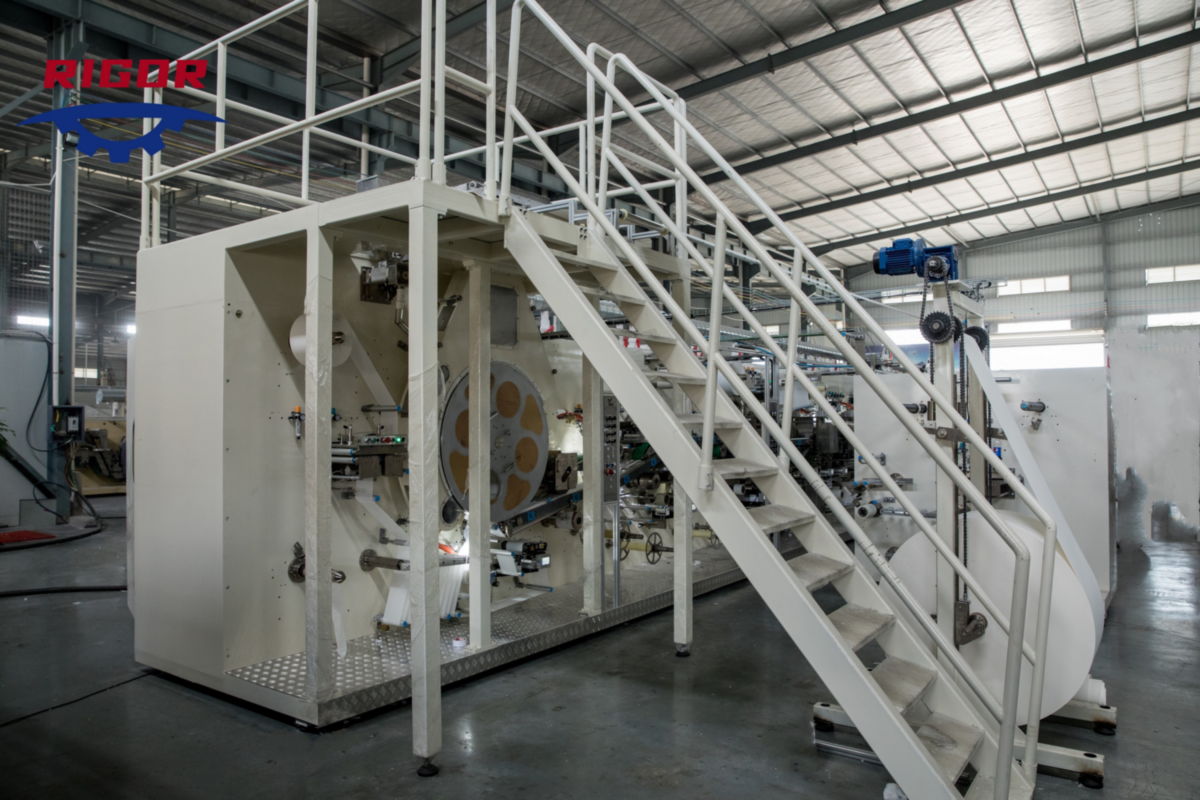

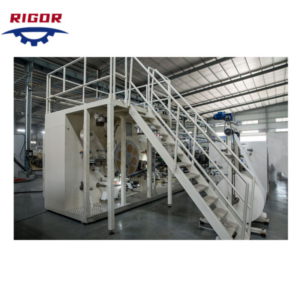

Full Automatic Pull Up Pant Baby Diaper Machine

Designed Speed

600 Pcs/minute(M size)

Air pressure

>=0.8Mpa 2.6m³/min

Machine size

32×8×5 M(L×W×H)

Machine weight

About 85tons

Unique benefits of owning Rigor’s diaper machine machine:
We care what you care most about purchasing a machine.
We have always believed in serving best machines possible for customers.
Our mission is to help each client stay at the top of diaper machine supplier.

Product Description

Machine Main Technical Parameters
Design speed 600 Pcs/minute(M size)
Working speed 500 Pcs/minute(M size)
Qualified rate >= 97%
(exclude the wastage due to the glue applicators and materials splicing joint)
Efficiency >= 85%
installation capacity >=400KW
Electricity 380V ±5%、50HZ
Wire Three phases four wires 380V/50Hz (ground wire) 3X150mm³+1X70mm³+1X25mm³
Air pressure >=0.8Mpa 2.6m³/min
Total weight About 85tons
Machine size 32×8×5 M(L×W×H)
Working space 42×12×8 M (L×W×H)
Machine color Rice white ,can be changed by order
Product size M-L-XL-XXL size
Containers 6X40HQ
Packaging: PE cover packing in container


Machine Standard Configuration:

Crusher system
Bottom tissue feeding, roll diameter φ800mm
Fluff forming system
SAP feeding system
Upper tissue, roll diameter φ800mm
Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
Press the absorbent core
ADL feeding, roll diameter φ800mm
One set products cutting unit
Hydrophilic nonwoven supply, roll diameterφ800mm
Leak cuff unit
Leg cuffs lycra supply
Backsheet film supply,diameterφ600mm
Three pieces complex, two sides fixing unit, adhesion pressing
Surface layer, absorption core, backseet film pressing
Inner waist nonwoven supply,roll diameterφ800mm
Front color tape passive unwinding, roll dia 500mm, max cut size 100*100mm
Waist elastic lycra supply
Waist fluff part lycra cut unit, in case this part gets wrinkled.
Horizontal stacker transmission

The reasons make Rigor machine the preferred option:

1.High speed: 500-600 pcs/min
2.Professional manufacturer
3.Top quality
4.High performance
5.Full servo automatic control
6.Easy operation
7.Quality assurance
8.Hygiene products converting solution
9.Customized service
10.Main supported parts from world famous brands.

Our Advantages:

Concentration on the area of diaper machine
Our factory focuses on different hygienic sanitary machinery production lines industry. For more than 20 years, We try our best to concentrate on improving our technology, skills and experience in this area. As a result, we gained a great number of honours and awards from Chinese government and our customers both from domestic and overseas markets.

Professionality for decades
In order to make sure our professionality is in the top level of the area, we always keep in step with the global hygienic sanitary products markets, continuously improving and innovating our technology to the lastest trends.We are able to offer you reliable production lines and professional solution and services.

Customization for special needs
With the highest level of technology in the area, we would very much like to attend to the advice of customers carefully, and offer you suitable and individual design to meet your requirements and satisfy you.

Preciseion and Quality Control
As a professional and experienced factory, we take “Quality First” as our working guideline, all majority parts of our production lines are purchased and processed according to the highest standards of the industry.
We have imported top grade CNC Machines to make sure accuracy and life long usage of the production lines we produced.
All the machines sold will be installed and assembled by experienced technicians.

We commit that the production lines we produced will perform excellently and stably, we sincerely hope that our efforts can help you to be successful. We are sure that our excellent machines can meet your demand and give you a tremendous feeling of fulfillment.

After-sales service:

The Seller shall be responsible to provide two technician to the buyer ’ s factory to help the buyer for Installation of the machines on their arrivals, to give full instruction for installations and operations so that the buyer can install the machines and operate for test run properly .

For more information, please do not hesitate to contact us, we would be very happy to serve you.
