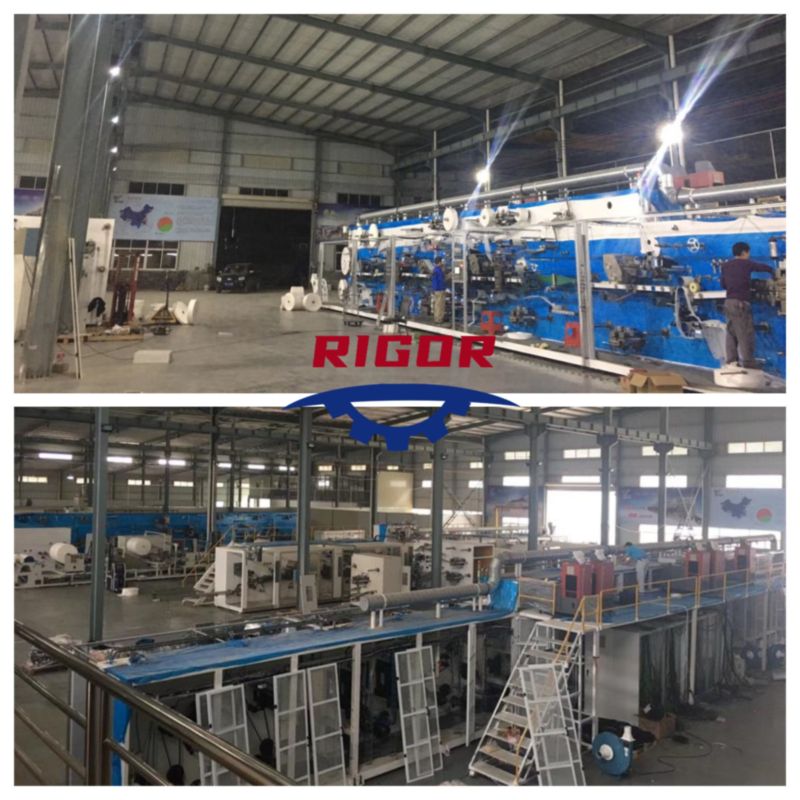

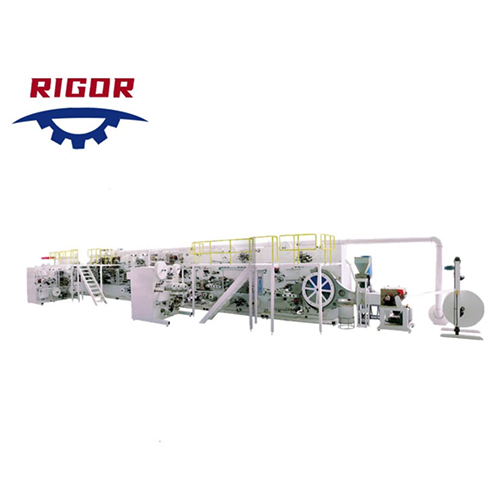

Big Waistband Baby Diaper Machine

Stable Speed

600pcs /min (I shape) 400-500pcs/min (Big waist band diaper)

Power:

250KW

Machine weight

about 50 Tons (whole production line)

Machine Size

28.0m× 7.0m× 3.5m(L× W× H )

Unique benefits of owning Rigor’s wet wipes machine:
We care what you care most about purchasing a wet wipes machine.
We have always believed in serving best machines possible for customers.
Our mission is to help each client stay at the top of wet wipes supplier.

Product Description

Volume (million pieces/ year) 40-140 million pieces
Stable Speed 600pcs /min (I shape)
400-500pcs/min (Big waist band diaper)
Passing rate ≥ 98% (Not include the glue applicator, Auto Splicing)
Power Supply 3 phase, 5 wires (380v, 50HZ)
Power Used 250KW
Electric wire 3×120mm2+1×50mm2+1×25mm2
Machine Size 28.0m× 7.0m× 3.5m(L× W× H )
Machine Weight about 50 Tons (whole production line)
Finish Product Size:
XL、L、M、S(Based on Customer’s requirement)
Max Min
Length 550mm 350mm
Width 350mm 200mm



Origin China
Model NO. DNW-NK600D-SV
Trade Terms FOB XIAMEN PORT
Payment Terms T/T, L/C
Automatic Grade Full Servo
Delivery Time 150 days after receive 30% deposit by T/T
Packing Way Anti-rust Oil+ PE Film Cover Whole Machine+ Seaworthy Wooden base Packing
Diaper Structure:Double layer anti-side leakage non-woven fabric + non-woven fabric layer (inside and outside a rubber band) + surface composite non-woven fabric + anti-side cloth + conductive layer chopped (do full length) + toilet paper + + Cotton core + SAP + lower toilet paper + online composite base film (base film positioning) + front waist stickers (cartoon online color positioning) + S cut (online composite) + online forming elastic waist (dotted line cut 285mm) + stereo Elastic (valgus 4 + 4) + Legs Elastic (3 + 3)



Brief introduction:

1.Eletrical system
2.Automatic Control System
PLC logic control system
Network control, integrity of process, paremeters and alarm.
Multi-points network.
Process parameters setting.
All parameters setting.
Full modular design.
Phaser auto tracking.
Space for Ethernet connection.
Space for other auxiliary control points.
3.Industry Operate Interface
To auto record and calculate all producing dates
To select the product size.
To select the fluff weight.
To adjust running speed.
To adjust bi-fold or tri-fold product.
To select number for single stack.
4.Sequence Start
5.Warming System
6.Auto controls other auxiliary parts.
7.Raw Material Control
8.Servo motor unwinding with tension control.
9.Zero time splicing
10.Splice jointer checking.
11.Breaking checking.
12.Quality Control
13.Safety Measures

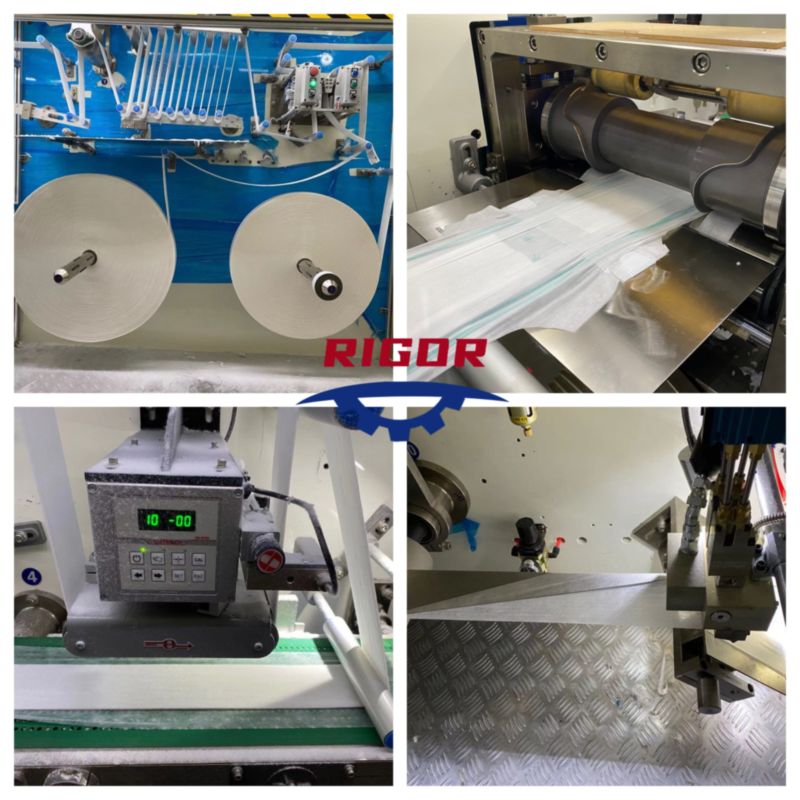

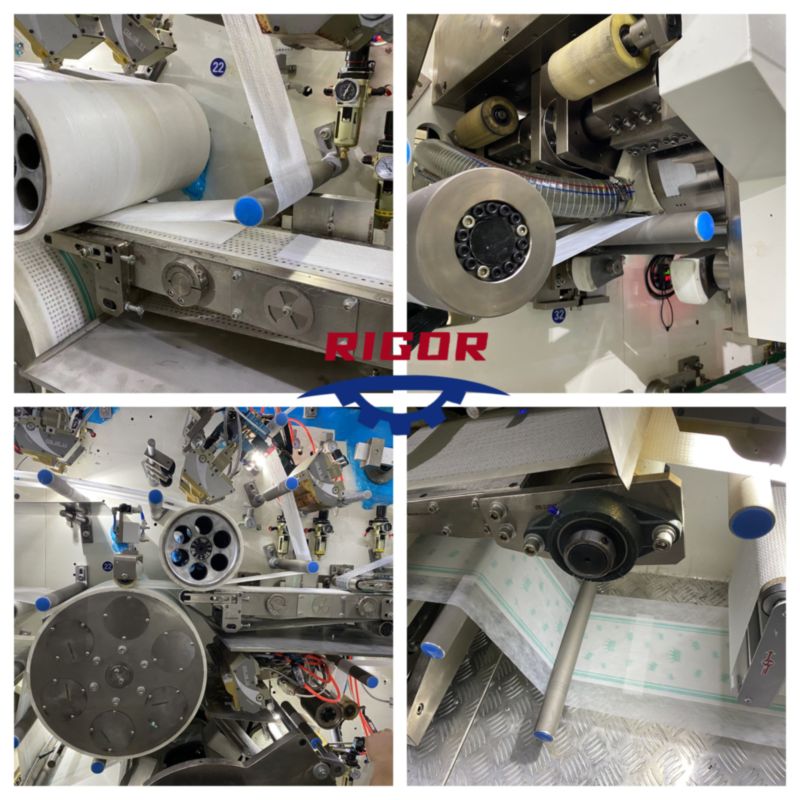

14.Mechanical Arrangement
Core Forming
Back Sheet Construction
Top Sheet Construction
Diaper Assembly and Finishing
Diapers Counting and Stacking

The reasons make Rigor machine the preferred option:

1.High speed: 400-600 pcs/min
2.Professional manufacturer
3.Top quality
4.High performance
5.Full servo automatic control
6.Easy operation
7.Quality assurance
8.Hygiene products converting solution
9.Customized service
10.Main supported parts from world famous brands.

After-sales service:

The Seller shall be responsible to provide two technician to the buyer ’ s factory to help the buyer for Installation of the machines on their arrivals, to give full instruction for installations and operations so that the buyer can install the machines and operate for test run properly .

For more information, please do not hesitate to contact us, we would be very happy to serve you.
